Refrigerant Air Cooled Condenser

Introduction

Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments.

We produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.

Features

1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;

2. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;

3. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;

4. Application for R22,R134a,R404a,R407C etc. Refrigerant;

5. FNS condenser utilized large air volume and low speed internal motors with low noise, beautiful appearance; Application for refrigerant equipments which demand high requirements of noise;

6. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.

Models Specifications

FN     S ----- 80     A

FN-Condenser Products Code

S-Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)

80-Heat Exchange Area(m2)

A-Model Change Design Code

FN Series: Standard Type Models: FN-2 to FN-180(1/4HP-30HP)

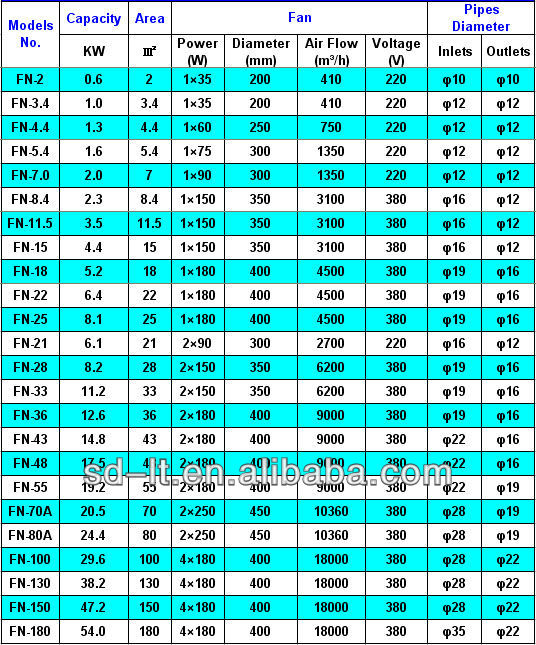

FN Type Models Technical Data Sheet:

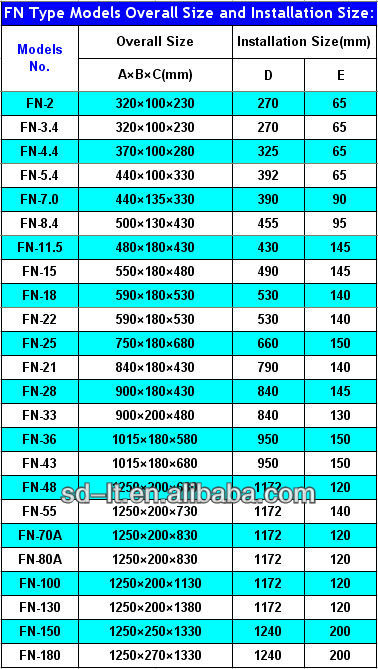

FN Type Models Overall Size and Installation Size:

FNS Series: Low Noise Type Models: FNS-25 to FNS-150

-Designed for High Requirements of Noise;

-Adopts Low Speed Motor, inside fixed;

-Used for very low noise requires refrigerant equipments;

FNS Type Models Technical Data Sheet:

FNS Type Models Overall Size and Installation Size:

FNV Series: Air Top Outlet Type Models: FNV-70A to FNV-505A

-Designed for Large Capacity Refrigerant Units;

-With external fans;

-Good heat transfer effect;

FNV Type Models Technical Data Sheet:

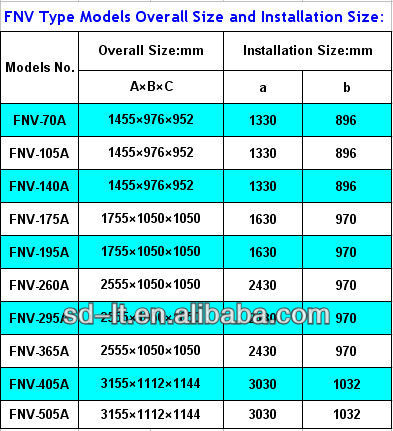

FNV Type Models Overall Size and Installation Size:

FNP Series: Water Spray Type Models: FNP-70 to FNP-505

-With water Spray Auxiliary cooling

FNP Type Models Technical Data Sheet:

FNP Type Models Overall Size and Installation Size:
