Brand Name: LYTTE, OEM
Model Number: FN-
Place of Origin: Shandong, China (Mainland)
Refrigeration Air Cooled Condenser FN Type
Model Specification of Refrigeration Air Cooled Condenser:
FN S ----- 80 A
FN: Condenser Products Code
S: Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)
80:Heat Exchange Area(m2)
A: Model Change Design Code

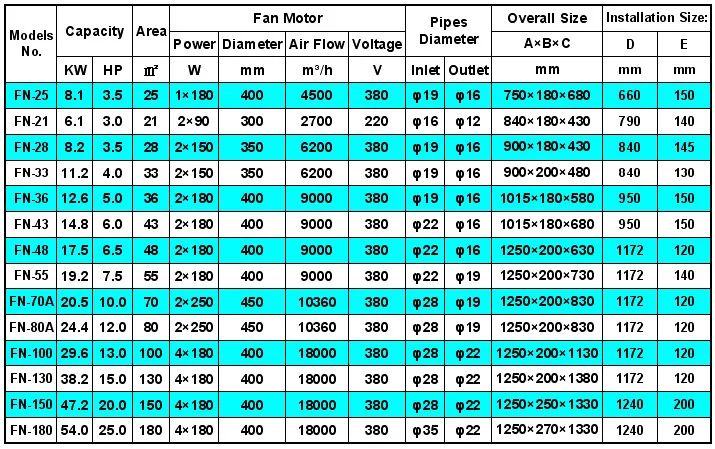

Technical Data Sheet of Refrigeration Air Cooled Condenser:

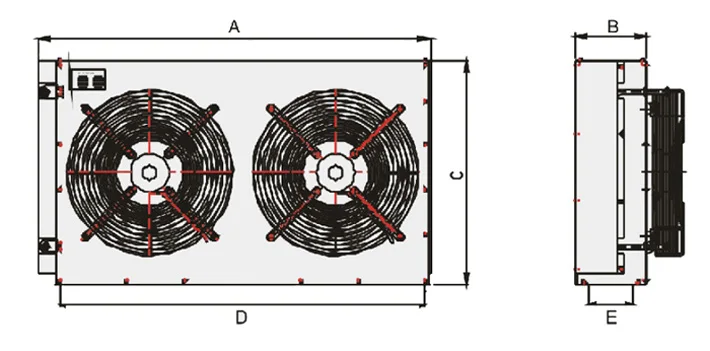

Refrigeration Air Cooled Condenser Overall Sizes:
Briefly Introduction of FN Type Refrigeration Air Cooled Condenser
1) Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments;
2)The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;
3)Coil adopted staggered permutation, and tighten to fit with Aluminum sheet to ensure high efficiency heat exchange;
4)Units adopted 2.8MPa air tightness test and system sewage discharge treatment;
5)Application for R22,R134a,R404a,R407C etc. Refrigerant;

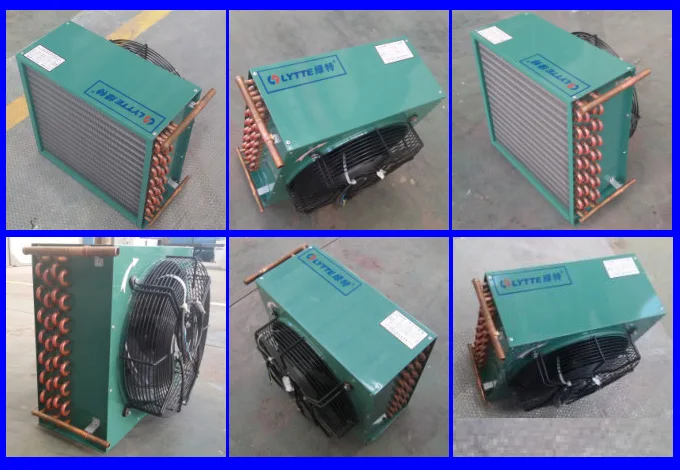

Completely Finished Refrigeration Air Cooled Condneser:

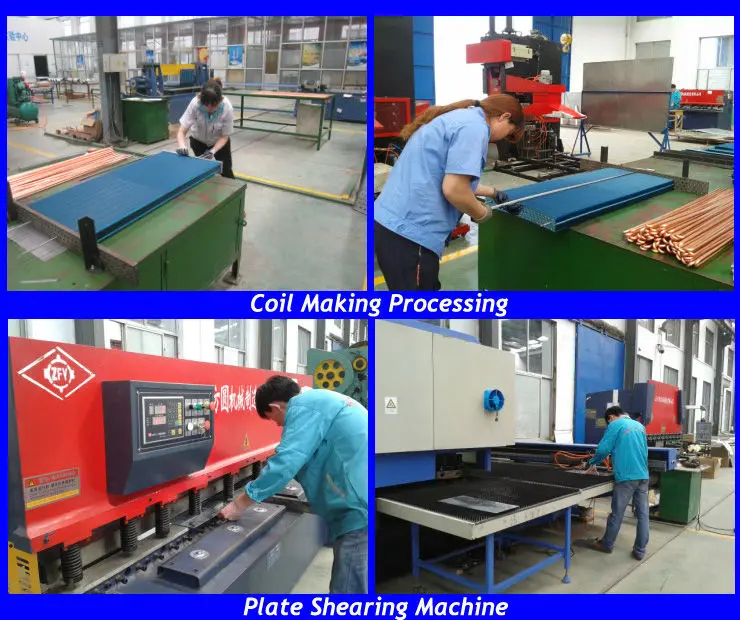

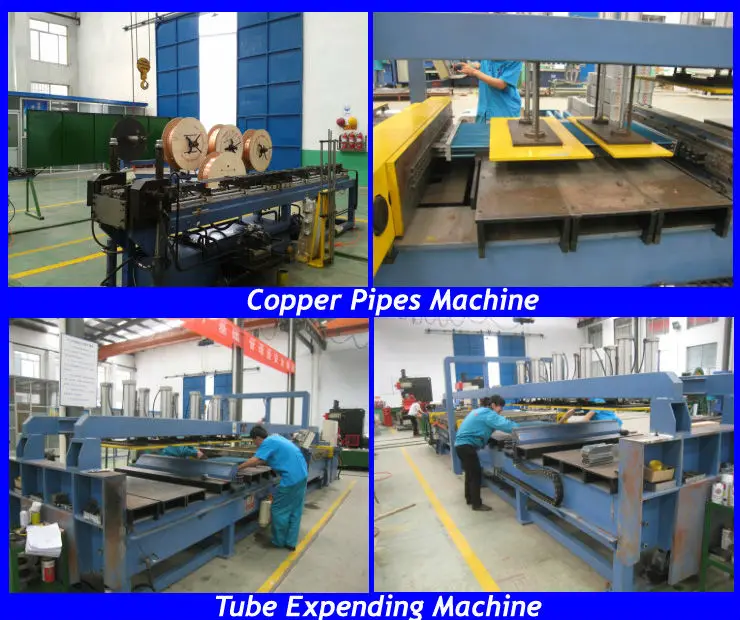

Refrigeration Air Cooled Condenser Prodcution Machine and Processing:
